Dry Granulator Bentonite Granules Making Machine For Irregular Cat Litter Particles

تفاصيل المنتج

مكان المنشأ: الصين

اسم العلامة التجارية: Gofine

إصدار الشهادات: CE

رقم الموديل: DZJ-I-2.0

شروط الدفع والشحن

الحد الأدنى لكمية: 1 مجموعة

الأسعار: $3500-4800/1set

تفاصيل التغليف: علبة من الخشب المقاوم

وقت التسليم: 1-3 مجموعات/15 أيام

شروط الدفع: ويسترن يونيون ، MoneyGram ، L / C ، T / T

القدرة على العرض: 25 مجموعة / شهر

احصل على افضل سعر
تفاصيل المنتج
إبراز:

Irregular Cat Litter Particles Making Machine,Irregular Cat Litter Particles Granulator,Irregular Bentonite Granules Making Machine

,

Irregular Cat Litter Particles Granulator

,

Irregular Bentonite Granules Making Machine

إنتاج:
1-3.5 t/h
القوة:
15-22 كيلو واط
مواصفات أسطوانة الضغط:
φ150x300
حجم التغذية:
≤0.5 ملم
معدل التحبيب:
> 98٪
طريقة التحبيب:
البثق الجاف
اسم المنتج:
حبيبات صنع الأسمدة الأمونيا
إنتاج:
1-3.5 t/h
القوة:
15-22 كيلو واط
مواصفات أسطوانة الضغط:
φ150x300
حجم التغذية:
≤0.5 ملم
معدل التحبيب:
> 98٪
طريقة التحبيب:
البثق الجاف
اسم المنتج:
حبيبات صنع الأسمدة الأمونيا
وصف المنتج

Product Overview

A double roller extrusion granulator for ammonium fertilizer is a type of dry granulation equipment used to create granular ammonium-based fertilizers. It works by compacting powdery raw materials between two counter-rotating rollers, forming sheets or ribbons that are then broken into granules. This method eliminates the need for drying, resulting in a more energy-efficient and cost-effective production process.



Features

  • Dry Granulation: No need for water or binders, simplifying the process.
  • Energy Efficient: Eliminates drying and cooling stages, reducing energy consumption.
  • Cost-Effective: Lower investment and quick cost recovery.
  • High Granulation Rate: Produces a high percentage of on-size granules.
  • Adjustable Granule Size: Granule size can be adjusted by changing the roller pressure and groove design.
  • Versatile Material Compatibility: Suitable for ammonium sulfate, ammonium chloride, urea-based fertilizers, NPK compound fertilizers, and organic-inorganic fertilizer blends.
  • Compact Structure: Small footprint and easy integration into existing production lines.
  • Durable Construction: Designed for long-lasting performance in demanding environments.​


Working Principle

  • Feeding: Powdery raw materials are fed into the granulator.
  • Compression: The materials are compressed between two counter-rotating rollers with specially designed grooves or molds.
  • Extrusion: High pressure forms dense sheets or ribbons.
  • Granulation: The sheets are then crushed and cut into granules.
  • Screening: Granules are screened for uniform size.

This type of granulator is suitable for producing a variety of ammonium-based fertilizers and offers a cost-effective and environmentally friendly alternative to traditional wet granulation methods.

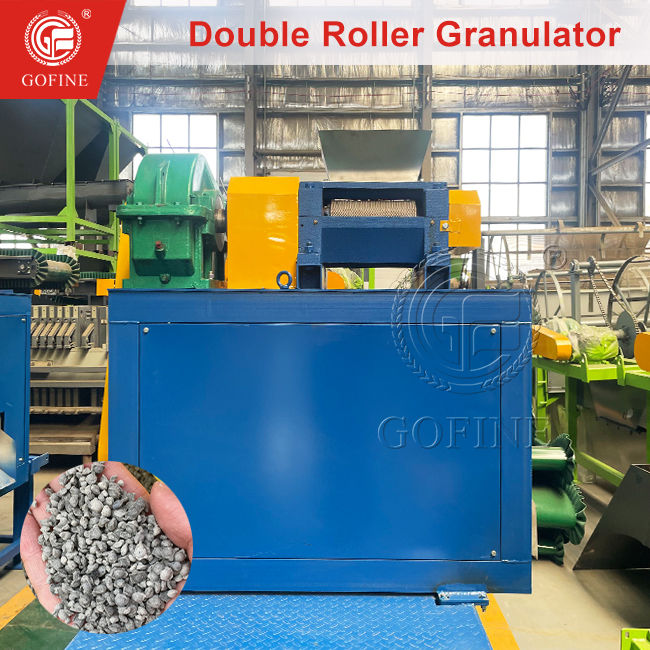

Dry Granulator Bentonite Granules Making Machine For Irregular Cat Litter Particles 0




Product Parameters

Product Category: Double Roller Press Granulator
Applications: Snow melting agent, desiccants, compound fertilizers, organic fertilizers, inorganic fertilizers, cat litter, graphite, detergent, etc.
Features: Dry Granulator
Capacity: 1-2t/h
Support and Services: Technical guidance for installation, commissioning, and operation, regular maintenance and repair services, replacement of parts and components, online technical support, training services for operators and maintenance personnel
Granulation Method: Extrusion
Roller: 300x150mm, Alloy Steel
Granulation Rate: >98%
Shipping: By sea or by land, delivery time: Within 15-30 days after receiving the deposit, port of shipment: Qingdao Port, China
Product Packaging: 1 set per wooden case, dimensions: 1350mm x 750mm x 1150mm, gross weight: 500kg

This Roll Extrusion Pellets Machine is suitable for De-icing agent granulation using the Double Roller Press Extrusion Granulator.





Product Details

Dry Granulator Bentonite Granules Making Machine For Irregular Cat Litter Particles 1

Dry Granulator Bentonite Granules Making Machine For Irregular Cat Litter Particles 2

Multilayer extrusion granulator

Dry Granulator Bentonite Granules Making Machine For Irregular Cat Litter Particles 3




About Us
As an agricultural equipment supplier with more than ten years of experience, Gofine Machine provides a variety of services to meet the needs of customers. Our services include:

  • Equipment supply

Provide various types of agricultural equipment, including organic fertilizer granulators, compound fertilizer granulators, inorganic fertilizer granulators, water-soluble fertilizer granulators, controlled-release fertilizer granulators, fertilizer batching machines, crushers, mixers, dryers, granule shaping machines, coating machines, granule screening machines, packaging machines and a complete set of fertilizer production lines.

  • Technical support

We provide professional technical consultation and support to help customers choose the right equipment and processes and optimize the production process.

  • Installation and commissioning

Provide equipment installation and commissioning services for customers to ensure the normal operation of the equipment and achieve the expected production results.

  • Training services

Provide operation training to help customer employees master the use and maintenance skills of the equipment and improve production efficiency.

  • After-sales service

Provide comprehensive after-sales service, including regular maintenance, troubleshooting and spare parts supply, to ensure the long-term and stable operation of the equipment.

  • Customized solutions

We provide personalized equipment and production line design solutions based on the specific needs of our customers to meet the needs of fertilizer production of different scales and types.
Through these services, we are committed to providing customers with high-quality fertilizer equipment and comprehensive support to help them succeed in a highly competitive market.
